Overnight 2 Fold Sofa Sleeper Mechanism
As the professional manufacture, LINKREST would like to provide you overnight 2 fold sofa sleeper mechanism. And we will offer you the best after-sale service and timely delivery. This overnight 2 fold sofa sleeper mechanism uses high-quality rivets, oil riveting process and metal washer technology. There is almost no gap between joints, but it works very smoothly to ensure the stability of sleepers. Sofa sleeper also plays an important role in hotels, motels, taxis, offices, hospitals and RV beds. They not only save room space, but also give us a low-carbon life.
Model:2500#
Send Inquiry PDF DownLoad
Product Description
Bi Fold Sofa Sleeper Mechanisms
Overnight 2 Fold Sofa Sleeper Mechanism Features & Benefits:
1. M12 Overnight Low Leg Standard Cavity 2500#.
2. Updated version 2500N has No Bar feeling for more comfort.
3. Patented partly assembled design for large container loading quantity but very easy to put together.
4. Option for extra long version 2500X which takes the mattress length 75".
5. Use high quality rivets and oil riveting process with metal washer technology, joints almost have no clearance but work very smooth for the stability of the sleeper.
6. Use stronger and thicker tubular steel to secure the loading capacity.
7. the sleeper opens flat to reduce the height difference between heart and foot for the comfort.
8. The folded mattress in headrest changed to be away from the back post to protect mattress from fliction in close position.
9. Option for Fire-proof and air-breath polydeck base for safety and health, or mixture of two or four slats.
10. Option for deep cavity series 2700# and extra narrow mounting depth 2300#.
See Video: Overnight 2 Fold Sofa Sleeper Mechanism
Overnight 2 Fold Sofa Sleeper Mechanism Models and size
| Size | King | Queen | Full | Twin | Mini-twin | Size A | Size B | Feature |
| Size E | 72" | 68" | 60" | 44" | 40' |
|
|
|
| Size D | 64" | 60" | 52" | 38" | 32" |
|
|
|
| 2300# | 2372L | 2368L | 2360L | 2344L | 2340L | 74cm | 72“ | Extra Narrow |
| 2500# | 2572L | 2568L | 2560L | 2544L | 2540L | 81cm | 72" | Standard |
| 2500H# | 2572H | 2568H | 2560H | 2544H | 2540H | 81cm | 72" | High leg |
| 2600# | 2672 | 2668 | 2660 | 2644 | 2640 | 81cm | 72" | High leg |
| 2700# | 2772 | 2768 | 2760 | 2744 | 2740 | 81cm | 72" | Deep Cavity |
| 2500X# | 2572X | 2568X | 2560X | 2544X | 2540X | 84cm | 75" | Extra Long |

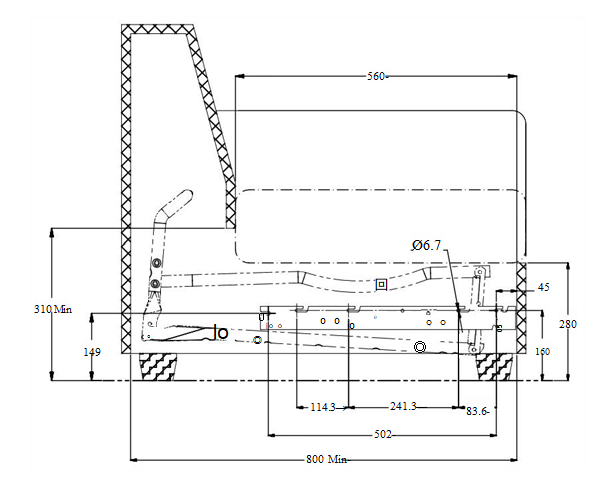

Overnight 2 Fold Sofa Sleeper Mechanism Mounting Installation.
