Sofa Sleeper RV Mechanism

Pullout Popup Sofabed Mechanisms

LINKREST is one of the leading Sofa Sleeper RV Mechanism manufacturers and suppliers in China. Our future is dependent on our passion for more value added and brand new designing, high quality products and professional service while meeting our finacial objectives. We have been investing in R&D, automatic production lines, and finding the best solution to reduce the cost and lead time for customer satisfaction. Raw material and transportation cost are on the rise, we have dedicated ourselves on finding technical solutions like our DIY mechanisms and redesigned construction to ensure customer satisfaction.

Sofa Sleeper RV Mechanism Features & Benefits:

1. Fit to traditional stationary backrest design,head board can be hided inside the fixed backrest.

2. Super comfort both sitting and sleeping due to all no sagging sinuous spring in the deck.

3. No need a separated mattress.

4. Fit to low leg and high leg styles as well as low seat design.

5. Safe linkage design to avoid the hurts issues.

6. No gap between the arm and cushion to protect mobile phone from damage,but bed sheet can be spread.

7. Opposite power springs assistant for one finger to open and close.

8. Middle part and pillow part can use mattress construction like mattress foam and fabric, because these two parts can be hided inside.

See Video:https://youtu.be/DLN5suVPzxw

And Loose back and loose seat cushion design.

Sofa Sleeper RV Mechanism Models & Mounting Width

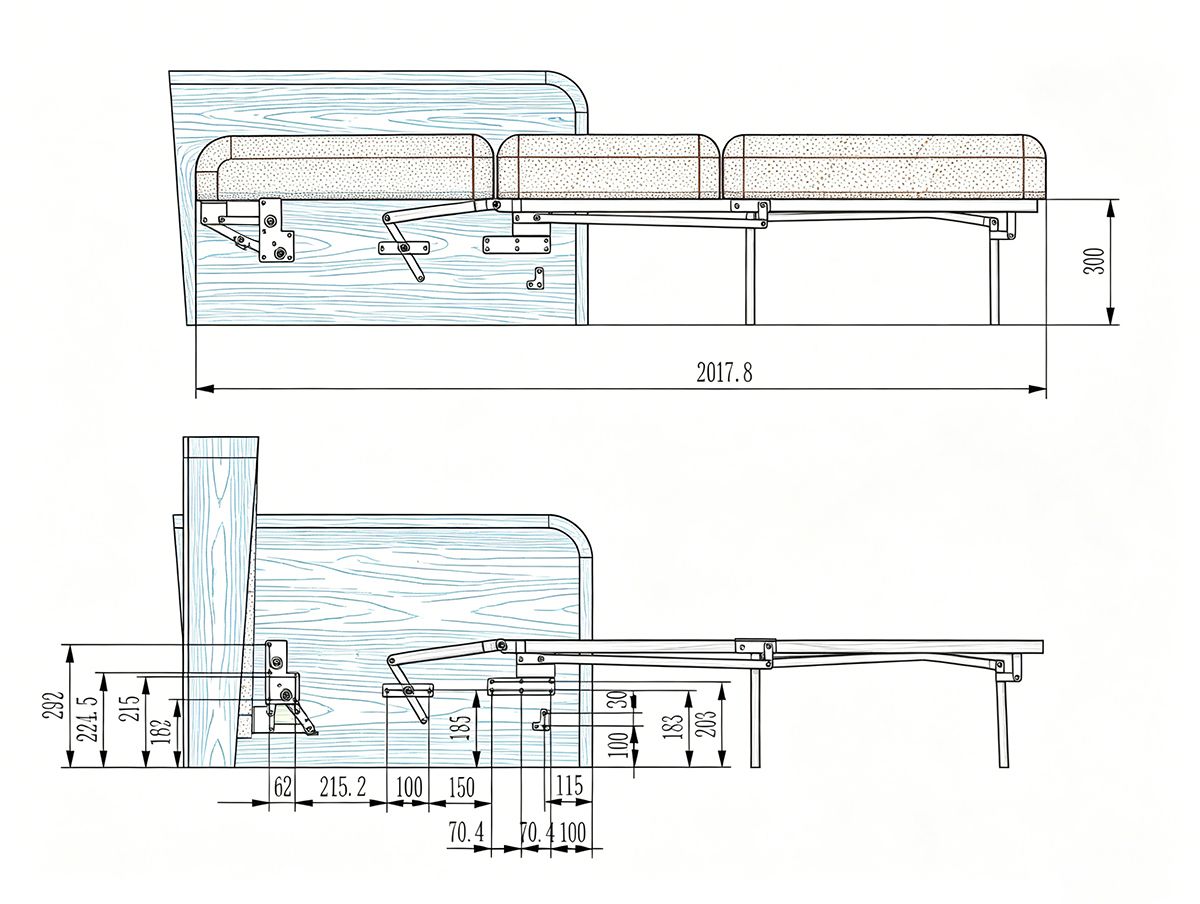

Sofa Sleeper RV Mechanism Mounting Drawing.

When the upholstery is finished,make sure the backrest doesn't goes down if people forget to lift the backrest first before closing,the backrest needs to be longer than the pivot point of middle frame.
